Relocating a Dandenong Bus Stop Over Live Underground Services

How Infra Projects Group delivered a DDA-compliant public transport asset on a constrained site, safely and on program.

In public infrastructure, the difficulty is rarely the asset itself. A bus stop is a straightforward piece of construction. What makes it demanding is everything surrounding it: live underground services, a footpath that must stay open, a traffic lane that must keep moving, and accessibility standards that allow no tolerance for approximation.

The Bus Stop Relocation project at Dandenong is a clear example. Below is the full project record, set out the way Infra Projects Group documents every completed job.

Project

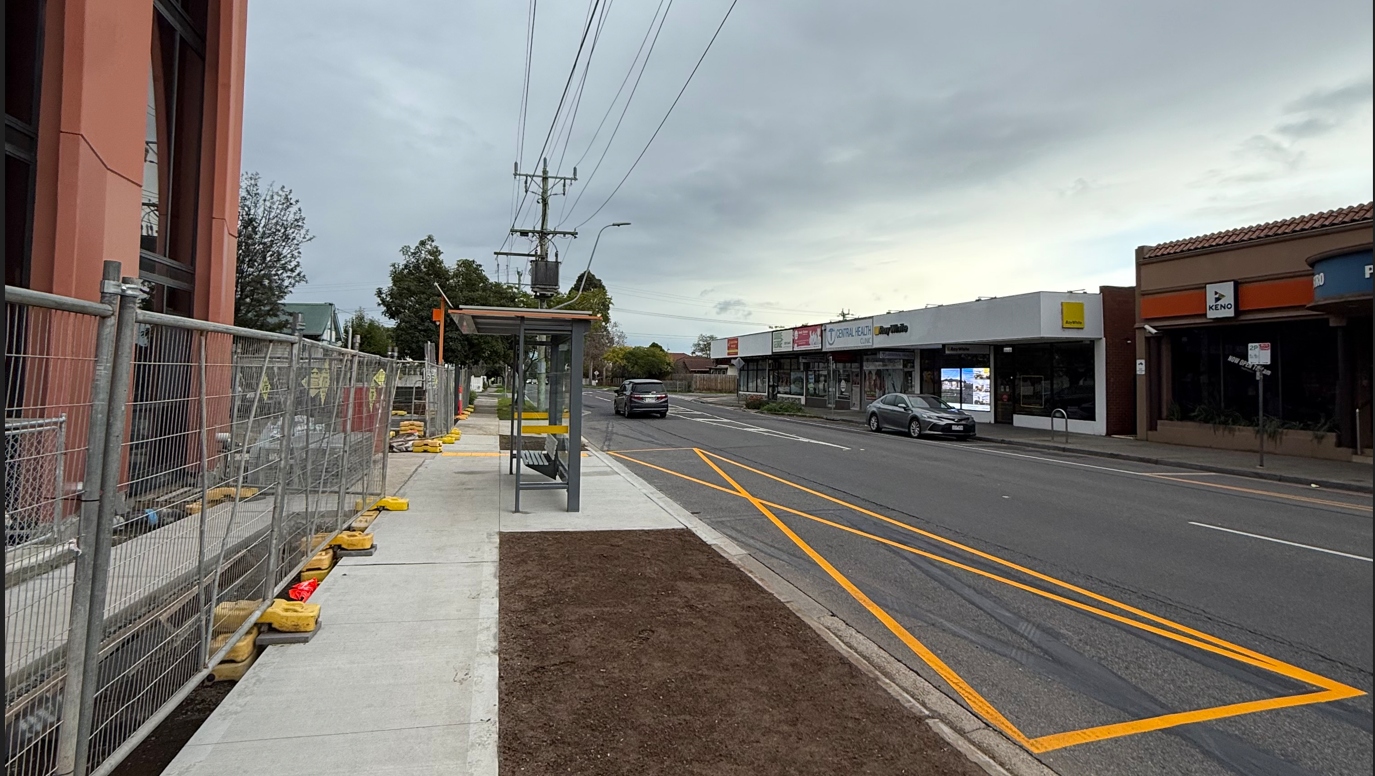

Bus Stop Relocation, Dandenong.

The works involved decommissioning an existing public bus stop and constructing a compliant replacement at a revised location within an active urban streetscape.

Scope

Infra Projects Group delivered the project end to end:

• Survey. A full site and service survey was carried out before any design work began, establishing existing levels, property and road reserve boundaries, surface conditions and the location of underground assets. This gave the design team an accurate picture of what was actually in the ground, rather than relying on records alone.
• Design coordination. The relocation design was developed and reconciled against the physical constraints of the site, the applicable asset and accessibility standards, and the requirements of the responsible authorities. Every clash between the proposed structure and existing conditions was worked through on the drawings before it became a problem on site.
• Authority approvals. We prepared and lodged the documentation required by council and the relevant asset authorities, managed the review process, and responded to conditions until sign-off was obtained. Construction did not commence until the design was formally approved as compliant.
• Traffic management. A compliant traffic management plan was prepared and implemented for the full duration of the works, covering vehicle movements in the adjacent lane, safe pedestrian paths of travel around the site, signage, and the staging of any temporary closures.
• Construction. Our crews delivered the physical works, including excavation around protected services, footings, kerb and paving, boarding area levels, tactile ground surface indicators and reinstatement, through to a completed and compliant bus stop ready for public use.

Engaging a single contractor across all five stages removes the interface risk that arises when survey, design, approvals and construction are procured separately.

Challenge

Three site conditions defined the degree of difficulty.

Existing underground services. The works area sat above live utilities. Excavation and footing design had to be developed around confirmed service locations, with protection measures in place so that supply remained uninterrupted throughout.

A restricted work area. The available footprint was tight. Pedestrian access along the footpath and traffic flow in the adjacent lane both had to be maintained, which constrained plant selection, material laydown and the sequence in which works could proceed.

Accessibility requirements. As a public transport asset, the relocated stop was required to meet DDA accessibility standards, covering boarding area dimensions, kerb and landing levels, tactile ground surface indicators and continuous accessible paths of travel. These are pass-or-fail criteria, verified at approval.

Solution

Infra Projects Group coordinated design and construction under a single point of responsibility, specifically to minimise disruption. In practice, that meant:

• Resolving service conflicts on the drawings, not in the ground. Utilities identified during survey were designed around before excavation began. On service-congested sites this is the single most effective way to avoid variations, service strikes and program delay.
• Confirming compliance before mobilising. The design was progressed through council and authority approval first, so the team arrived on site with an approved, DDA-compliant solution rather than an assumption.
• Protecting live services during excavation. Works over the utility corridor were carried out with confirmed service locations and protection measures in place, keeping supply uninterrupted throughout construction.
• Keeping the street operational. A compliant traffic management plan maintained a safe pedestrian path of travel and kept the adjacent traffic lane running for the duration of the works.
• Staging the build to suit a tight footprint. Construction advanced in sequenced stages sized to the restricted work area, with plant, deliveries and material laydown planned around the space genuinely available.
• Running design and delivery as one team. A single point of responsibility removed the handover gaps between consultants and contractors, allowing the program to be compressed without compromising safety or compliance.

Outcome

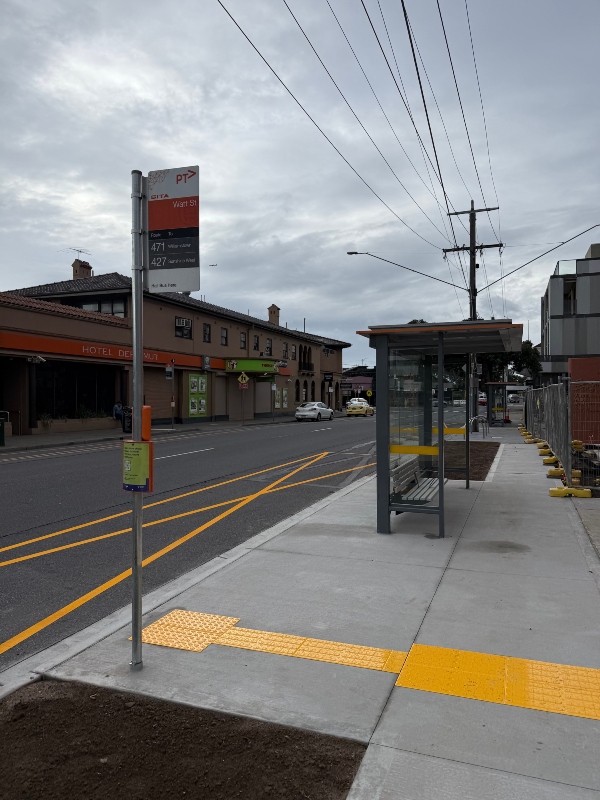

The relocated bus stop was completed safely and in accordance with approved requirements, on program and with minimal disruption to the surrounding community.

The client received a DDA-compliant, council-approved public transport asset, delivered by a single accountable contractor from initial survey through to handover.

The wider lesson for asset owners

Councils, developers and asset owners across Melbourne encounter this same combination repeatedly: services below ground, constrained sites, live traffic, and accessibility standards that must be met exactly. Projects run over budget and over program not because the construction is complex, but because these issues surface late, after approvals, after mobilisation, after excavation has begun.

The controllable factor is coordination. Survey early, resolve conflicts in design, obtain approvals on the correct basis the first time, and manage traffic and pedestrian safety as a planned discipline rather than a reaction. That approach is the reason Infra Projects Group has completed more than 75 projects across Victoria, safely, compliantly and on time.
